Mastering The Art Of Grounding Portable Generators

Mastering the art of grounding portable generators is vital for ensuring safety, proper functionality, and compliance with regulations. Whether you’re powering an outdoor event or keeping essential appliances running during a power outage, it’s crucial to understand the principles of electrical grounding.

In this blog post, we’ll demystify the process by discussing different types of portable generators, highlighting equipment needed for proper grounding and offering practical tips for safe operation—all in clear and straightforward terms that even novices can appreciate.

Key Takeaways

  • Proper grounding of a portable generator is essential for safety, compliance with regulations, and preventing damage to appliances and electronics.
  • To properly ground your portable generator, you need to understand the role of the generator’s frame in grounding.and how to connect the neutral conductor to the ground using different methods like earth grounding rods or copper wires.
  • Different types of portable generators have specific requirements related to grounding and bonding that must be followed according to manufacturer guidelines. These include conventional generators that typically use gasoline as fuel and inverter generators that are more efficient but still require proper grounding measures.
  • Always prioritize safety when operating a portable generator by following manufacturer’s instructions, avoiding overloading your unit, keeping it away from water sources, complying with legal regulations set by OSHA and NEC standards, and seeking expert help if necessary for connecting equipment grounding terminals securely annually checkedensuring its proper functionality throughout each use.

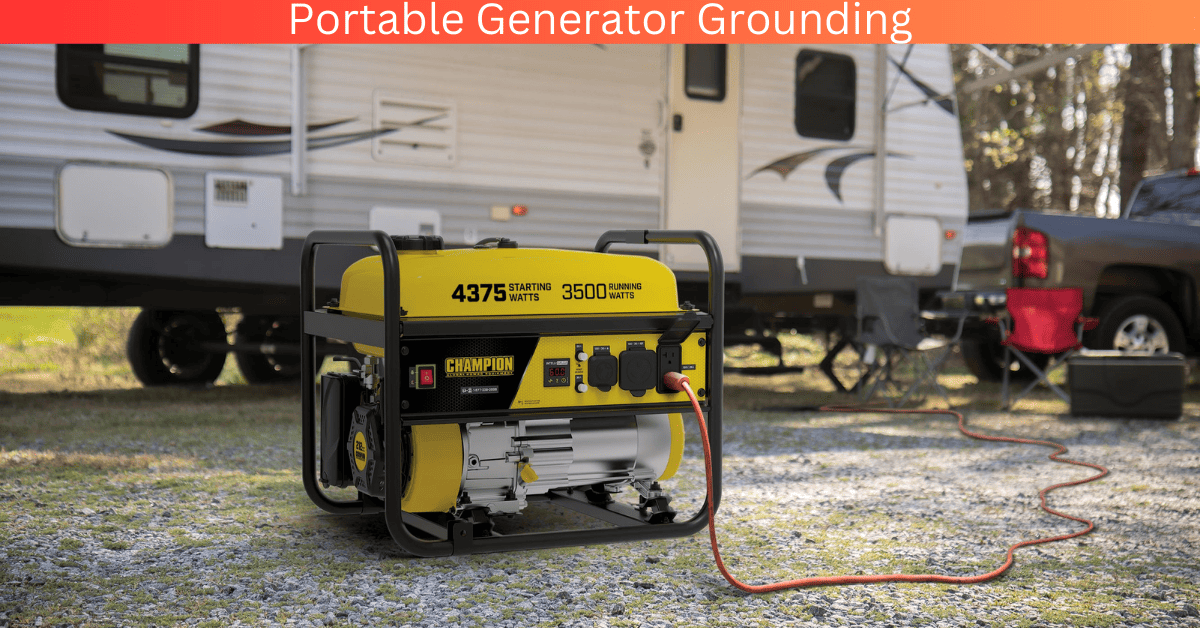

Portable Generator Grounding

Understanding Grounding Requirements For Portable Generators

To properly ground a portable generator, it is essential to understand the role of the generator’s frame in grounding and how to connect the neutral conductor to the ground.

The Role Of The Generator’s Frame In Grounding

Understanding the role of your portable generator’s frame in grounding is crucial to ensuring its proper and safe operation. In some cases, the frame itself can serve as the ground without requiring any additional connections.

However, it’s important to consult your generator’s manufacturer guidelines since each model may have specific requirements related to grounding and bonding.

For example, certain generators require a connection between their neutral conductor and an external ground source using a system bonding jumper.

Connecting The Neutral Conductor To The Ground

Connecting the neutral conductor to the ground is a crucial step in ensuring the safety and proper functioning of your portable generator. As a possible customer, it’s essential for you to understand that this process involves creating an intentional connection between the grounded circuit conductor (neutral) and the grounding means for your generator.

One great example highlighting its significance can be seen when using transfer switches with portable generators – this is where National Electrical Code (NEC) highlights specific grounding requirements for safe operation.

Imagine you’re setting up your generator during a power outage at home. By properly connecting your neutral conductor to the ground before plugging in all those essential appliances, like heaters or refrigerators, you can ensure their safety from potential damage caused by improper electrical bonding.

The Importance Of Properly Grounding A Portable Generator

Properly grounding your portable generator is crucial for ensuring safety, complying with regulations, and preventing damage to appliances and electronics.

Ensuring Safety

Prioritizing safety is paramount when using a portable generator, and one of the key aspects to ensure electrical protection is properly grounding your unit.

Grounding helps create a safe path for the electrical current flow, thereby reducing the risk of electric shock or electrocution.

By following proper grounding techniques, like installing earth grounding rods and using copper wires, you not only protect yourself and others from hazards but also extend the life of your appliances connected to the generator.

The significance of proper grounding can be demonstrated by recalling an incident where improper connections led to injuries during a family gathering; had they grounded their portable generator correctly, these issues could have been avoided entirely.

Compliance With Regulations

Adherence to applicable regulations relating to grounding portable generators is crucial for the safety of you and those around you. It’s essential that you comply with federal, state, and local regulations when using your generator.

To ensure compliance with electrical safety regulations, make sure your generator has an equipment grounding conductor connected to a properly installed grounding system.

According to the National Electrical Code (NEC), it’s mandatory for portable generators connected through transfer switches to meet Article 250 standards for proper grounding.

Preventing Damage To Appliances And Electronics

As a homeowner or business owner, you rely on various electrical devices to keep your property running smoothly. However, power outages can occur unexpectedly and wreak havoc on your electronics.

You don’t want to risk losing thousands of dollars in equipment just because of one faulty generator setup.

When generators are not grounded correctly, voltage surges can easily travel through electrical connections and cause significant harm to electronic devices such as computers, TVs, refrigerators, HVAC systems, and more.

Additionally, lightning strikes during thunderstorms can create further risks without proper grounding measures in place.

Relying solely on the frame of the portable generator for grounding can result in serious issues if it’s not connected securely with equipment grounding terminals annually checked by an expert technician .

It doesn’t matter whether you have a conventional or inverter portable generator; they all need adequate grounding measures applied before operation.

Types Of Portable Generators

There are two main types of portable generators: conventional and inverter.

Conventional Portable Generators

One popular type of portable generator is the conventional portable generator. These generators typically use gasoline as fuel and are commonly used for outdoor activities, camping trips, or home backup power during emergencies.

Conventional generators are available in a range of sizes, from small models that can power basic appliances to larger ones that can provide more energy-intensive needs like powering an entire house.

When it comes to grounding requirements, conventional generators must be properly grounded to prevent electrical hazards and ensure safety when in use.

Inverter Portable Generators

As a Possible Customer, you may be wondering about the benefits of inverter portable generators. Inverter technology generates electricity through high-amperage solid-state devices, resulting in a more efficient and quieter operation compared to conventional generators.

These types of generators are ideal for sensitive electronics such as laptops or smartphones, as they provide stable and safe power without voltage fluctuations.

All-Power offers various options for inverter portable generators that are perfect for home backup power or construction site power needs.

How To Properly Ground Your Portable Generator

Proper grounding of your portable generator involves using earth grounding rods, connecting to a stationary object, or using a copper grounding wire.

Using Earth Grounding Rods

As a portable generator owner, one of the most important safety measures you can take is proper grounding. Using earth grounding rods is one effective way to ground your generator and prevent electrical shock hazards.

To do this, you’ll need to drive a copper grounding rod into the ground at least 8ft deep, in accordance with local electrical codes.

Remember that grounded portable generators are still capable of producing lethal levels of electricity if improperly handled. Always follow manufacturer’s instructions for safe use, avoid overloading your generator, and keep it away from water sources.

Linking The Copper Wire To The Grounding Rod

Connecting To A Stationary Object

Another way to properly ground your portable generator is by connecting it to a stationary object. This method involves securing the grounding wire around a metal pole or any other fixed object that can conduct electricity safely.

For instance, if you plan on using your portable generator in your backyard, you could wrap the copper grounding wire around a steel fence post or an exposed water pipe outside of your home.

This method may be more practical than installing an earth-grounding rod if you’re using your portable generator temporarily and just need quick access to a safe power source.

Grounding With A Grounding Wire

One common approach for properly grounding a portable generator is to use a heavy-duty copper wire. This wire should have an attached grounding conductor and be equipped with three-pronged cord connectors, which enables it to connect the generator’s frame to the earth.

To achieve this, you’ll need to pound a ground rod into the earth, connecting it via a ground cable to the ground lug on your generator.

Proper grounding plays an important role in ensuring that your portable generator operates safely and efficiently. Without proper grounding, electric shock could occur when using certain electrical appliances or electronics.

Installing A Transfer Switch

To properly ground a portable generator, it’s essential to install a transfer switch. The transfer switch acts as a bridge between the power from the generator and your home’s electrical panel, ensuring safe and reliable power delivery during outages.

When installing a transfer switch, make sure to follow all manufacturer instructions carefully and choose one that meets NEC requirements for grounding and bonding. Switched-neutral transfer switches are often preferred because they make wiring AFCI and GFCI circuit breakers easier.

Overall, proper installation of a transfer switch is key in ensuring both safety compliance with regulations for temporary or permanent generator installations.

Equipment Needed For Proper Grounding

To properly ground a portable generator, you will need equipment such as a copper grounding wire, copper grounding rod, and grounding clamp.

Copper Grounding Rod

The copper grounding rod is a vital tool for proper grounding of portable generators. This type of ground rod is highly recommended over other materials for its durability, conductivity, and resistance to corrosion.

It’s an essential component for residential electrical systems as it provides lightning protection and protects equipment from damage caused by fluctuations in voltage.

To install the copper grounding rod, it must be firmly connected to the generator’s frame using a copper wire clamp. The clamp should fit tightly around the rod to ensure that there is no movement or disconnection during use.

Grounding Clamp

One of the essential pieces of equipment needed for proper grounding of a portable generator is a grounding clamp. This device ensures that the copper grounding wire stays securely attached to both the generator and the ground, preventing any accidental disconnection.

The clamp typically comes in various sizes to fit different generator frames and can be easily installed by clipping it onto an accessible metal surface on the frame.

It’s important to note that while some generators come with their own built-in grounds, it may still be necessary to attach an additional grounding wire using a clamp for safety reasons.

Additionally, ensuring compliance with NEC regulations often requires this extra step as well.

Tips For Safe Use And Operation Of Grounded Portable Generators

To ensure safe use and operation of your grounded portable generator, always keep it away from water, avoid overloading the generator, and follow the manufacturer’s instructions.

Keep Away From Water

It is crucial to keep portable generators away from water sources. Water can conduct electricity, and if it comes into contact with a live generator or its electrical cords, it can lead to electrocution or other serious injuries.

Whether you are using your portable generator for outdoor events, camping trips, or during a power outage at home, always make sure that the generator and its electrical components are kept dry.

Store fuel in a safe location away from the generator and never operate the unit in wet conditions.

Avoid Overloading The Generator

It’s essential to avoid overloading your generator, as it can lead to damage or even a fire. An overloaded generator may start producing too much heat, and its components could quickly wear out or burn up if it runs for an extended period.

To prevent this from happening, make sure you know the power requirements of your appliances and don’t exceed the maximum output capacity of your portable generator.

One helpful tip is to always keep an eye on the wattage rating of each device you plan on using with your portable generator. Be aware that some appliances like refrigerators often use more power when they first turn on than when they are running steadily.

Follow Manufacturer’s Instructions

As a generator owner, it’s crucial to follow the manufacturer’s instructions for safe use and operation of your grounded portable generator.

The manual provided by the manufacturer contains valuable information about grounding requirements, proper use, and maintenance procedures.

For example, some manufacturers may recommend using specific types of extension cords with their generators to ensure proper grounding and bonding. They may also provide information on how frequently you should conduct safety checks or have maintenance performed on your generator.

By following these recommendations from the manufacturer, you can help keep yourself and those around you safe while using your portable generator.

OSHA regulations and the National Electric Code (NEC) have specific requirements for grounding portable generators. It is crucial to comply with these regulations to ensure safety and prevent damage to equipment.

OSHA Regulations

As a Possible Customer, it is important to remember that OSHA regulations require strict compliance when using portable generators. These regulations prevent accidents in the workplace and maintain safe working conditions for employees.

For instance, non-current-carrying metal parts of equipment must be bonded to the generator frame while properly grounded connections must be tight on portable and vehicle mounted generators.

To comply with these requirements, consult the manufacturer’s instructions for proper grounding methods and make sure you are working in approved locations and conditions.

National Electric Code (NEC)

As a Possible Customer, it’s essential to understand the legal requirements for grounding portable generators. With regards to this, the National Electric Code (NEC) outlines regulations for generator grounding to ensure safety and proper electrical system protection.

NEC’s Section 250.4 provides general guidelines for bonding and grounding all electrical systems that are grounded or ungrounded. It highlights the need for proper grounding electrode installation and lists equipment necessary to establish adequate ground connections, which include copper grounding rods and wires, clamps used in securing ground wires appropriately.


Grounding your portable generator is not only essential for safety but also for proper functionality. Knowing the requirements and options available can help you master the art of grounding your generator correctly.

Remember to follow manufacturer’s instructions, use proper equipment such as copper grounding wire and clamp, and comply with legal regulations set by OSHA and NEC.

Always prioritize safety when operating a portable generator, especially when it comes to electricity.

Why is it important to ground a portable generator?

Grounding your portable generator helps to protect you and others from electrical shock by providing a path for stray electrical current to be safely directed away from the device.

How do I properly ground my portable generator?

You can properly ground your portable generator by connecting it to an appropriately sized grounding rod with copper wire, or by using a grounding plate if you don’t have access to soil that will allow for proper penetration of the grounding rod.

What are some common mistakes people make when attempting to ground their generators?

Some common mistakes include failing to use an appropriate size grounding conductor, improperly installing the grounding electrode system or not performing regular maintenance checks on the equipment used in the grounding process.

Are there any safety tips I should keep in mind when working with a grounded portable generator?

Yes! When working with grounded portable generators, always wear insulated gloves and shoes with non-conductive soles, avoid touching metal components while handling live wires and never operate your unit in enclosed spaces where carbon monoxide could accumulate.
